Wednesday, May 19, 2010

Passenger Door Window

In my last post, I showed that the rear sash bushing in the window regulator was missing.  I had thought about machining a replacement bushing in Delrin, but in the end decided it wasn't worth it.  Instead of spending hours machining something that may or may not work I decided to just get a new regulator.  I am anxious to get this car on the road and spending time on non-EV-related activities just doesn't seem worth it to me.  So I found junkie regulators for $50 (plus shipping, because none of the boneyards near me have Saturn coupes), or brand-spanking-new regulators from for $80 plus or minus.  No brainer for me - a few clicks of the mouse and 2 days later a brand-new regulator shows up at my door.  Nice!

I don't have any pictures of the intermediate steps, but suffice it to say that the new regulator went in pretty easily.  However, when I tried to put the glass back in it didn't seem to want to go in straight.  And once I was able to wiggle it into what I thought was the right spot it seemed jammed.  Thinking that there might be some debris in the window track, I started feeling around inside and discovered that the rubber guide at the front window track was twisted which prevented the window from sliding properly.  Aha!  So that's why the bushing broke in the first place!

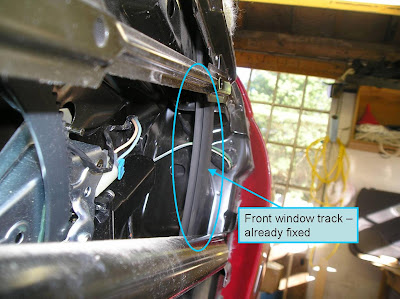

Well, I couldn't access that rubber piece from the inside of the door so I had to take the outer (plastic) panel off to access it.  It actually was fairly easy to do - remove 3 nuts and the side-view mirror comes off, pry out the outer window trim, undo 10 torx bolts, and voila! the panel falls off.  Once the outer panel was off it was easy to readjust the rubber guide - here are a couple of pics of it already fixed (forgot to take a picture of its original state!).

With the exterior panel off, installing the window was a breeze.  I checked the operation of the window a few times (works beautifully) and then reassembled the door.  Of course I forgot to install one of the styrofoam pieces (doh!), so I had to take it apart and put it together again, but it's amazing how easy it is to do something for the second time.

A couple of pics of the newly assembled and perfectly operating door.  Success!

Yah, I know.  The car is filthy.  All in good time.........

Now, if only the EV parts of the car can go together as easily.

Wednesday, May 12, 2010

Radiator Battery Box and Passenger Door Window

Between throwing out my back and having a house full of relatives not much has been happening, but I made some small progress this week.

Radiator Battery Box
I previously showed the car modifications needed in order to put two batteries where the radiator used to reside.  Since then I've:
  • Painted the frames
  • Cut pieces of wood which will be the bottom and sides of the box
  • Painted the wood with (blue) epoxy paint
  • Cut pieces of plastic (HDPE, 0.020" thick) to put in between the wood and frame (prevents water which might come in through the grille from soaking into the wood)
  • Attached the wood and plastic (with caulking to seal between plastic and frame) to the frame with self-tapping screws
  • Cut off the excess screw length
Here's a picture of the frame with wood/plastic/caulk, ready to be installed in the car.

Here are a couple of views of the box installed:
Looking into the engine compartment toward the front of the car.
Close-up of the front corner of the box, looking through the space where the headlights will reside.
View from the front of the car.  It's really hard to see, but the sway bar is lower than the bottom of the box, so it shouldn't interfere with the operation of the car (or the belly pan I'd like to install).

Passenger Door
When I bought the car the passenger door window mechanism was broken.  When I took the door apart to investigate I saw that one of the bushings that connects the scissor mechanism to the window sash was missing.  Here is a picture of the sash and scissor mechanism showing where the part is missing.

There are two of these bushings.  Here's a picture of the front bushing.

You can't purchase those bushings individually, unfortunately, only as part of the entire regulator (sash, scissor mechanism, motor), so I'm going to try and machine a new bushing out of delrin.  If that fails, then I'll get a junkyard regulator to replace the entire thing.

Tuesday, May 4, 2010

Battery Boxes (again)

In previous posts, I showed the design and fabrication of the metal and wood portions of the battery boxes.  My original intent was to have the lids push down on the batteries with small lengths of PVC pipe.  I've seen this done on several conversions on the web.  The main advantage of this method for me is that it simplifies the bottom of the box, especially how easy it will be to contain any spills.  However, it greatly complicated the design and strength requirements for the lid.  My original plan called for an angle iron frame and support members that would be very heavy and would require large bolts to hold it in place.  These large bolts and heavy lid would have to be removed every time I wanted to check water levels or electrical connections.  In addition, because of the placement of the battery boxes in the back of the car, it would be very awkward to reach some of the bolts.  Finally, it was not clear to me that the lids could be removed with the seats in place.  Too much effort!

So, instead, I opted for a different design.  This one is also described by many converters on the web.  Instead of pushing down on the batteries from the lid, I will use threaded rods with steel pieces laid across the tops of the batteries to pull them down from the base of the box, just like the starter battery in all ICE cars.  I opted for 5/16" threaded rod and 1" steel box tubing in place of the usual M4(?) threaded rod and polypropylene battery straps or molded pieces that are used for starter batteries.

Since there is little space underneath the battery boxes (I'm trying to keep the batteries as low as possible without cutting into the floor) I welded nuts to the top side of the bottom frame.

The steel tubing was a little challenging. For the main box (6 batteries side by side) there was plenty of room for the tubing to run down the center of the batteries.  There is a nice gap in the row of filler caps, and plenty far away from all of the battery terminals.
However, because the box was designed to just barely fit the width of the back seat area, the top frame angle pieces point "in."  This means that the threaded rod will be directly under a piece of steel, and so the tubing cannot be dropped straight down on it.  So I cut slots in the tubing so that it can be slid onto the threaded rod from the side.
Also, because the tubing will have to span 6 batteries I wanted to add a threaded rod to the center of the box to limit the span.  So, I made a "T" out of a couple pieces of flat bar and welded a nut to that for the center threaded rod.  This meant that I had to cut the bottom wood piece in half (so now it's much easier to load into the box!) to make room for the new "T."

Since there are three tie-down places for this piece of tubing, I put the two slots on opposite sides.  So, when installing the tubing I drop the tubing over the center threaded rod with the tubing pointing to the corners of the battery box, then rotate the tubing until the ends meet the two threaded rods at the ends of the battery box.
Here's a picture showing the end of the steel tubing.  It's hard to tell from this angle, but there isn't a lot of space between the top of the threaded rod and the steel angle.

For the rearmost battery box the steel tubing was challenging in another way.  In this case the top frame is angled "outboard" so there will be no issues with dropping the tubing straight down onto the threaded rod.  However, in this box the batteries are laid end-to-end, and what I quickly discovered is that there is not room for the steel tubing between the battery terminals and the filler caps.  Instead of opting for a smaller version of tubing (1/2" would probably work ok) for each row (there are 2), I chose to hold the batteries down by their edges instead.  My plan is to have a single piece of tubing run along the common edge between the two rows of batteries, with "outriggers" welded in place to help keep the batteries from jostling out of place.  Kind of looks like a TV antenna?

This welded tube structure will be held down in two locations, inboard from the very end of the box, so the span is not excessive.  In these locations, there's a nice strong piece of angle to weld the nuts to.
In both cases, the batteries will be constrained at the bottom so they cannot slide around.  No pictures yet, but I plan to use pieces of wood screwed into the bottom.

The radiator box added another challenge to the hold-down scheme.  The batteries are also laid end-to-end in this box, so the 1" tubing will not fit.  So I bought some 3/4" aluminum tubing to lay across the batteries.  However, this box is not as tall as the rear battery boxes (by mistake?  Possibly.) so I've opted in this case to use my original intent of pushing the batteries down.  These batteries will be loaded from the bottom so I will lay pieces of 1" tubing across the battery (side-to-side) which will contact the top frame when they are in place.  I may have to add a piece of silicone rubber under these pieces of tubing so that the batteries are held snugly when the base is fully installed.  A junk piece of steel tubing (welding practice!) illustrates the concept.

So, after slapping some paint on the newly-welded parts of these boxes I should finally be able to load them into the car!
